• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1991 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145314

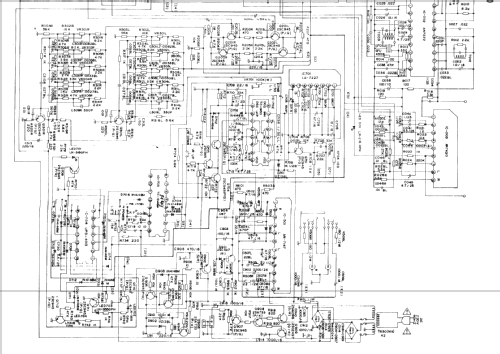

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 37

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Stereo System RS157R4 - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, with any shape - general.

• Notes
• ICs: 7
  Kleine Kompaktanlage mit Cassettendeck, Plattenspieler und CD-Spieler; Musikleistung 2× 5 Watt.

• Mentioned in
• Original Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
