Stereo System RS162R4
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145148

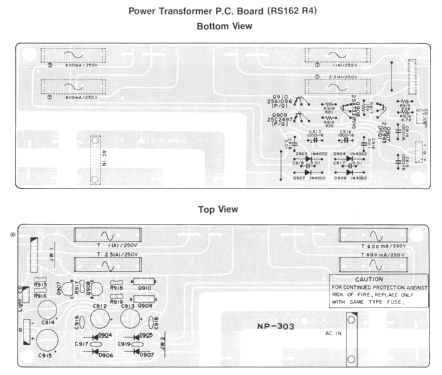

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 71
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 450/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org
- Model: Stereo System RS162R4 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Notes
- ICs: 15
NF-Leistung: 2× 10 Watt; eingebautes Cassettendeck, Plattenspieler und CD-Spieler; Sendersuchlauf, Stationspeicher: 10× UKW, 5× MW, 5× LW.
- Mentioned in
- Original Siemens Service Unterlagen
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
