Tango UKW-Super 573U

Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 9542) Radio

Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 696102) Radio

Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 898440) Radio

Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 568975) Radio

Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 910509) Radio
Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 693527) Radio Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 693528) Radio
Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 693639) Radio Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 58125) Radio
Use red slider bar for more.

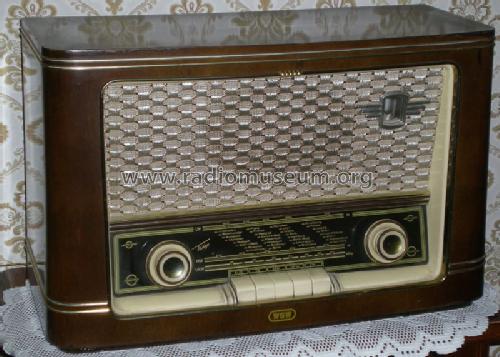

Tango UKW-Super 573U; Siemens-Austria WSW; (ID = 693527) Radio
Siemens-Austria WSW;: Tango UKW-Super 573U [Radio] ID = 693527 800x572
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tango UKW-Super 573U, Siemens-Austria (WSW); Wien:
eigene Sammlung

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCC85 UCH81 UF89 UABC80 UM80 UL84
Semiconductors (the count is only for transistors) E250C130
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Tango UKW-Super 573U - Siemens-Austria WSW; Wien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 470 x 295 x 205 mm / 18.5 x 11.6 x 8.1 inch
Notes
  • 5 Tasten;
  • Kassette hell oder dunkel
  • 2 Skalenlämpchen 12V; 0,1A
  • 2 Sicherungen 0,5A
Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Price in first year of sale 1'695.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
