• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1971 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223896

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Powered by external power supply or a main unit. / 18 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tuner RH 402 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 335 x 89 x 303 mm / 13.2 x 3.5 x 11.9 inch

• Notes

• 18 Volt~ Stromversorgung aus Haupt-Apparat

  sechs UKW-Stationstasten, Gehäusefarben in Braun oder Bronze.

• Mentioned in

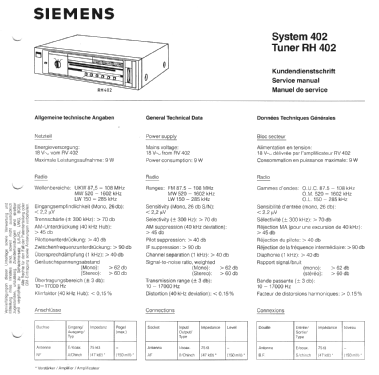

• Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
