For model Turf RK84, Siemens; D (S.& Halske / S. Electrogeräte):

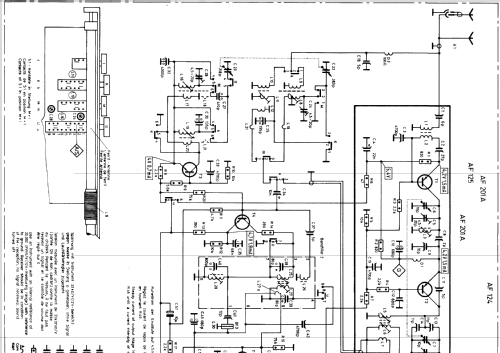

Q: Siemens Service

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF201 AF201 AF124 AF125 AF201 AC127 AC127 AC152 AC152
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.8 W (unknown quality)
from Radiomuseum.org Model: Turf RK84 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 180 x 80 mm / 10.2 x 7.1 x 3.1 inch
Notes Netzbetrieb mit zusätzlichem Netzteil möglich.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
