• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1977

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 286449

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-290W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, IF regeneration; ZF/IF 38900 kHz; 1 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 230 / 7 x 2 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Metal case

• from Radiomuseum.org

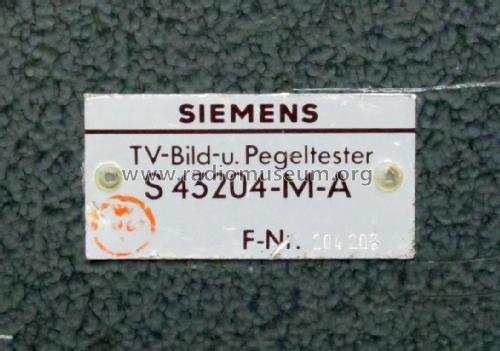

• Model: TV- Bild- und Pegeltester S43204-M-A - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 298 x 335 mm / 15.7 x 11.7 x 13.2 inch

• Notes

• Antennenmeßgerät für VHF- und UHF-Bereiche.

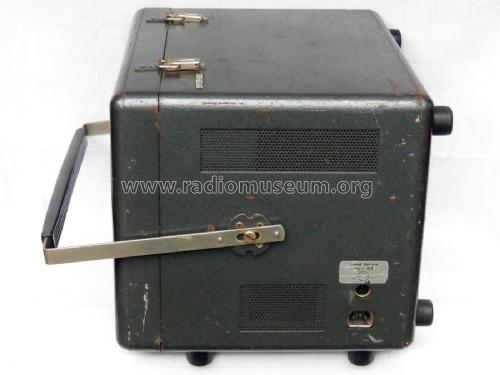

  Gerät im verschließbaren Stahlblechgehäuse.

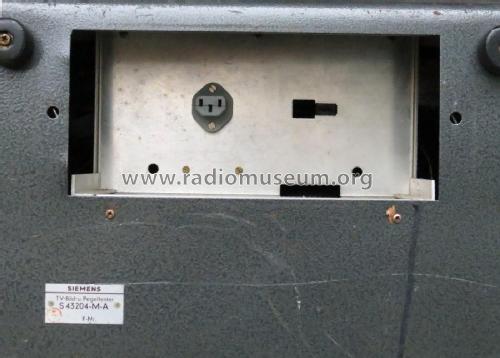

  Netz- und Akkubetrieb ist möglich.
  Der Akkusatz wiegt nochmals 4 kg.



• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Mentioned in
• Funkschau (23/1977, S. 1080)

• Author
• Model page created by Erwin Scholle. See "Data change" for further contributors.
