Videorecorder FM 724
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1993 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 248626

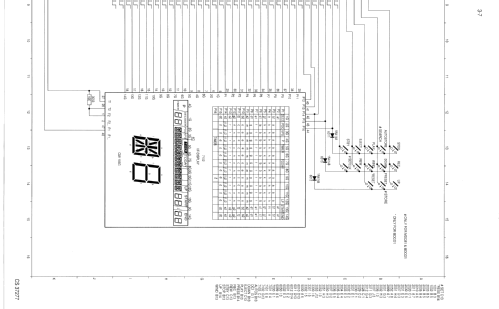

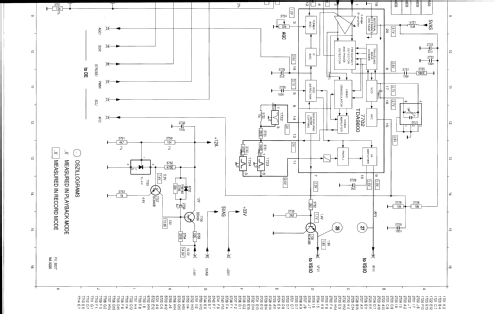

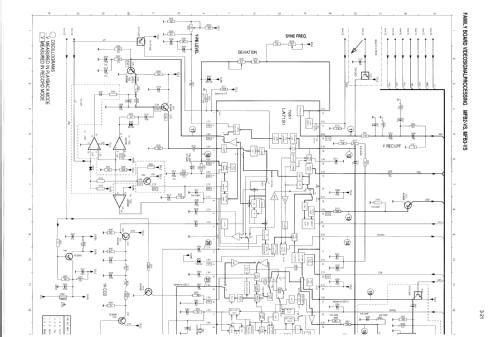

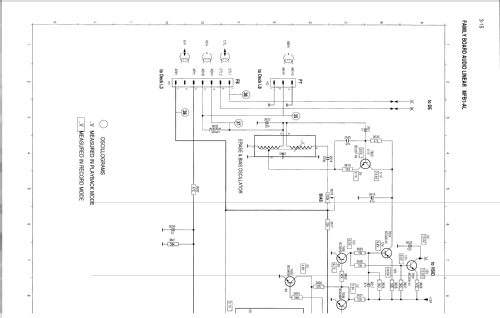

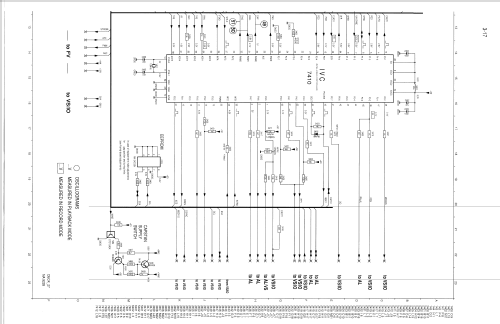

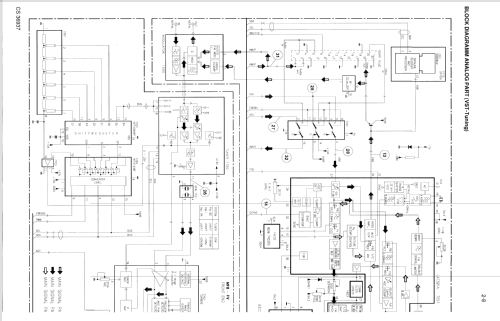

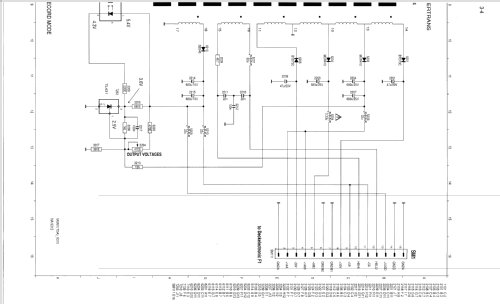

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Video-Taperecorder/-Player; Radio Control (+Remote Wire etc)
- Power type and voltage
- Alternating Current supply (AC) / 180-240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Videorecorder FM 724 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 435 x 96 x 386 mm / 17.1 x 3.8 x 15.2 inch
- Notes
-
VHS-Videorecorder PAL B/G. 4 Videoköpfe, VPS, ATS-Euro, Teletext.
Die technischen Unterlagen gelten auch für die Geräte FM720, FM722, FM723.
Eine Auflistung der entsprechenden Detailunterschiede ist vorhanden.
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
