Portable Radio 29SA7567

Portable Radio 29SA7567; Siera; Belgien (ID = 1989888) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989889) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989890) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989891) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989892) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989893) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989894) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989895) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989896) Radio

Portable Radio 29SA7567; Siera; Belgien (ID = 1989897) Radio
Portable Radio 29SA7567; Siera; Belgien (ID = 1989887) Radio
Use red slider bar for more.
Portable Radio 29SA7567; Siera; Belgien (ID = 1989887) Radio
Siera; Belgien: Portable Radio 29SA7567 [Radio] ID = 1989887 948x860
Select picture or schematic to display from thumbnails on the right and click for download.
For model Portable Radio 29SA7567, Siera; Belgien:

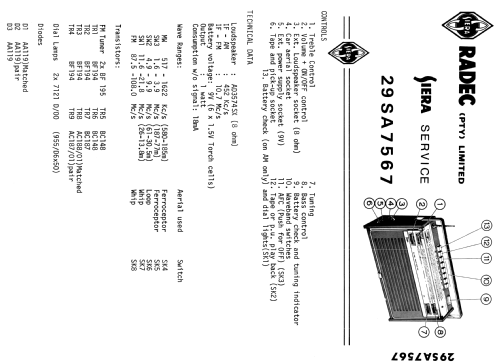

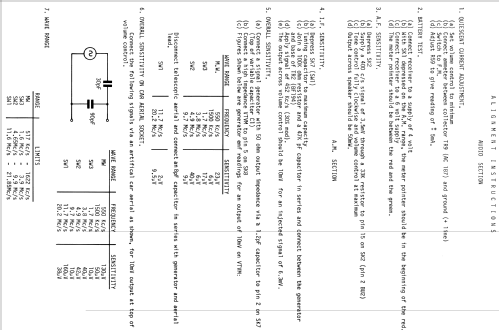

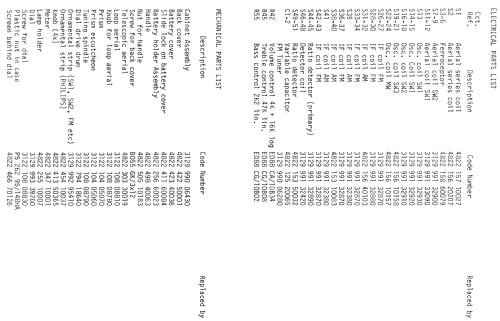

Aus dem Servicemanual

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF195 BF195 BF194 BF194 BF194 BF194 BC148 BC148 BC187 AC187 AC188 AA119 AA119 AA119
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 4 AF stage(s)
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 6 x 1,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Portable Radio 29SA7567 - Siera; Belgien
Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
