S133B; Siera; Belgien (ID = 351841) Radio

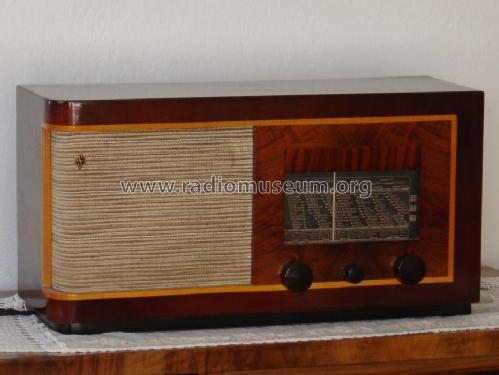

Siera; Belgien: S133B [Radio] ID = 351841 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model S133B, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK21 DF21 DAC21 DL21
Main principle Superheterodyne (common); ZF/IF 473 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: S133B - Siera; Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 270 x 210 mm / 20.1 x 10.6 x 8.3 inch
Notes
3 Band reception:
  • LW: 708 - 2000 m.
  • BC: 186 - 585 m.
  • SW: 16,7 - 51 m.
Loudspeaker Philips type 9686 or 7660. Connectors for second loudspeaker and for pick-up.

This model is comparable with Philips 614B, NSF H132B and Waldorp 120 with DK21.
Price in first year of sale 125.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers. (Generic model 133B dated 1940)

Model page created by John Koster. See "Data change" for further contributors.
