S35A (SS35A, Siera Super 35) tubes FC4, VP4A, 2D4

S35A ; Siera; Belgien (ID = 162038) Radio
S35A ; Siera; Belgien (ID = 160632) Radio S35A ; Siera; Belgien (ID = 160634) Radio
S35A ; Siera; Belgien (ID = 160633) Radio S35A ; Siera; Belgien (ID = 160635) Radio
S35A ; Siera; Belgien (ID = 160636) Radio S35A ; Siera; Belgien (ID = 304012) Radio
S35A ; Siera; Belgien (ID = 304013) Radio S35A ; Siera; Belgien (ID = 304014) Radio
S35A ; Siera; Belgien (ID = 1186040) Radio S35A ; Siera; Belgien (ID = 1193975) Radio
Use red slider bar for more.

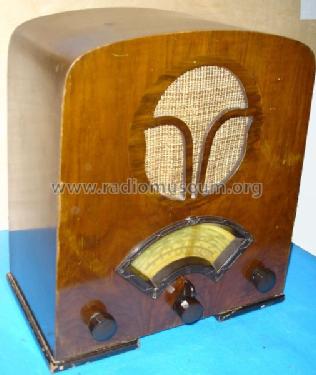

S35A ; Siera; Belgien (ID = 160632) Radio
Siera; Belgien: S35A [Radio] ID = 160632 506x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model S35A (SS35A, Siera Super 35) tubes FC4, VP4A, 2D4, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner

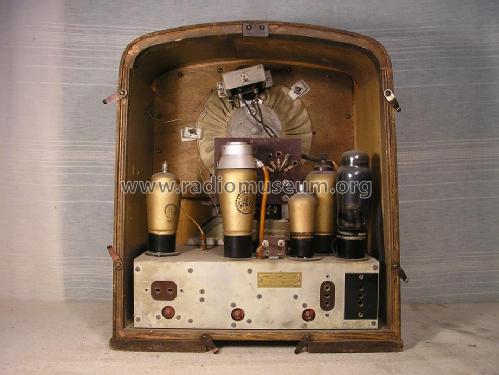

Valves / Tubes 6: FC4 VP4A 2D4 SP4 PM24M DW2X
Main principle Super-Heterodyne (Super in general); ZF/IF 104 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-115; 120-130; 140-160; 210-230; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: S35A [tubes FC4, VP4A, 2D4] - Siera; Belgien
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 265 x 350 x 195 mm / 10.4 x 13.8 x 7.7 inch
Notes
2 Band reception:
  • LW: 760 - 1900 m.
  • BC: 200 - 550 m.
Tuning scale light bulb type: 8046 (6V, 500mA).
Loudspeaker Philips type 4281. Connectors for second and for pick-up.

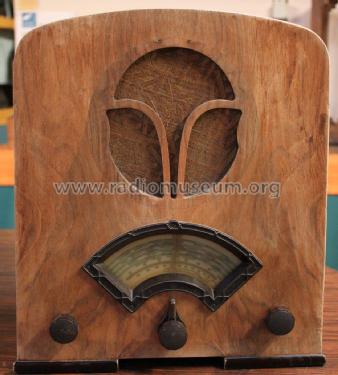

S35A has a varnished walnut and marquetry cabinet.
There is also a model S35A with Philips tubes.

The schematic and a Siera literature source mention output tube PH24M instead of PM24M.
Net weight (2.2 lb = 1 kg) 7.7 kg / 16 lb 15.4 oz (16.96 lb)
Price in first year of sale 1'795.00 BEF
Collectors' prices
Source of data -- Original prospect or advert
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)

Model page created by Axel Harten. See "Data change" for further contributors.
