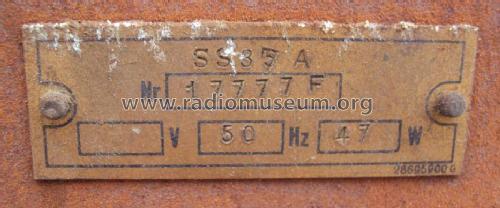

S37A (SS37A, Siera Super 37) tubes FC4, VP4A, 2D4

S37A ; Siera; Belgien (ID = 1407352) Radio S37A ; Siera; Belgien (ID = 1407353) Radio
S37A ; Siera; Belgien (ID = 1407354) Radio S37A ; Siera; Belgien (ID = 763995) Radio
S37A ; Siera; Belgien (ID = 1407355) Radio S37A ; Siera; Belgien (ID = 1407356) Radio
S37A ; Siera; Belgien (ID = 1915849) Radio S37A ; Siera; Belgien (ID = 1917736) Radio
S37A ; Siera; Belgien (ID = 1917737) Radio S37A ; Siera; Belgien (ID = 1917738) Radio
Use red slider bar for more.
S37A ; Siera; Belgien (ID = 1407352) Radio
Siera; Belgien: S37A [Radio] ID = 1407352 544x618
Select picture or schematic to display from thumbnails on the right and click for download.
For model S37A (SS37A, Siera Super 37) tubes FC4, VP4A, 2D4, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: FC4 VP4A 2D4 SP4 PM24M DW2X
Main principle Superheterodyne (common); ZF/IF 104 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-115; 120-130; 140-160; 210-230; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: S37A [tubes FC4, VP4A, 2D4] - Siera; Belgien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 350 x 410 x 215 mm / 13.8 x 16.1 x 8.5 inch
Notes
2 Band reception:
  • LW: 760 - 1900 m.
  • BC: 200 - 550 m.
Tuning scale light bulbs type: 2 x 8046 (6V, 500mA).
Loudspeaker Philips type 4283. Connectors for second loudspeaker and for pick-up.
S37A has a varnished walnut and marquetry cabinet. Anti-fading and progressive tone control.
There is a model S37A with Philips tubes.
Net weight (2.2 lb = 1 kg) 9.8 kg / 21 lb 9.4 oz (21.586 lb)
Price in first year of sale 2'250.00 BEF
Source of data -- Original prospect or advert
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)

Model page created by John Koster. See "Data change" for further contributors.
