S45A (Siera Super 45) tubes FC4, VP4A, 2D4, Pen4VA

S45A ; Siera; Belgien (ID = 223429) Radio S45A ; Siera; Belgien (ID = 1915852) Radio

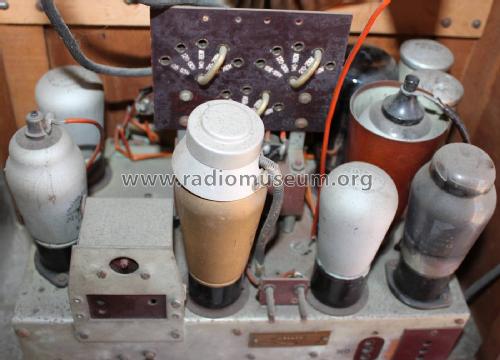

S45A ; Siera; Belgien (ID = 1918042) Radio S45A ; Siera; Belgien (ID = 1918043) Radio
S45A ; Siera; Belgien (ID = 1918044) Radio S45A ; Siera; Belgien (ID = 1918045) Radio
Use red slider bar for more.
S45A ; Siera; Belgien (ID = 223429) Radio
Siera; Belgien: S45A [Radio] ID = 223429 305x350
Select picture or schematic to display from thumbnails on the right and click for download.
For model S45A (Siera Super 45) tubes FC4, VP4A, 2D4, Pen4VA, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: FC4 VP4A 484VX 2D4 SP4 Pen4VA DW2X
Main principle Superheterodyne (common); ZF/IF 115 kHz
Wave bands Broadcast (MW) and Long Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 105-115; 120-130; 140-160; 210-230; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: S45A [tubes FC4, VP4A, 2D4, Pen4VA] - Siera; Belgien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 415 x 490 x 220 mm / 16.3 x 19.3 x 8.7 inch
Notes
The radio has a visual tuning aid using triode 484VX and a milliampere meter.
2 Band reception:
  • LW: 800 - 1900 m.
  • BC: 200 - 550 m.
Tuning scale light bulbs type: 3 x 8059 (6V, 100mA).
Loudspeaker Philips type 4283. Connector for second loudspeaker.

See also the similar Tenor T45A.

There is also a version S45A with Philips tubes.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 2'850.00 BEF
Source of data -- Original prospect or advert
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)

Model page created by John Koster. See "Data change" for further contributors.
