S46A tubes FC4, VP4A, 2D4, Pen4VA

S46A; Siera; Belgien (ID = 223430) Radio S46A; Siera; Belgien (ID = 640055) Radio

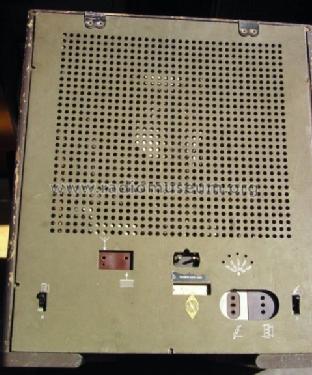

S46A; Siera; Belgien (ID = 640056) Radio S46A; Siera; Belgien (ID = 644631) Radio
S46A; Siera; Belgien (ID = 1785617) Radio S46A; Siera; Belgien (ID = 1917739) Radio
S46A; Siera; Belgien (ID = 1917740) Radio S46A; Siera; Belgien (ID = 1917741) Radio
Use red slider bar for more.
S46A; Siera; Belgien (ID = 223430) Radio
Siera; Belgien: S46A [Radio] ID = 223430 300x350
Select picture or schematic to display from thumbnails on the right and click for download.
For model S46A tubes FC4, VP4A, 2D4, Pen4VA, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: FC4 VP4A 2D4 SP4 Pen4VA DW2X
Main principle Superheterodyne (common); ZF/IF 115 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105- 115; 120-130; 140-160; 210-230; 240-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: S46A [tubes FC4, VP4A, 2D4, Pen4VA] - Siera; Belgien
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 400 x 490 x 230 mm / 15.7 x 19.3 x 9.1 inch
Notes
3 Band reception:
  • LW: 760 - 1900 m.
  • BC: 199 - 552 m.
  • SW: 16,7 - 52 m.
Tuning scale light bulbs type: 2 x 8046 (6V, 500mA).
Loudspeaker Philips type 2151. Connectors for second loudspeaker and for pick-up.

See also the S46A with Philips tubes.

See also model Tenor T46A

See also model Jura 46A.

Net weight (2.2 lb = 1 kg) 18.5 kg / 40 lb 12 oz (40.749 lb)
Price in first year of sale 3'250.00 BFR
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)

Model page created by John Koster. See "Data change" for further contributors.
