• Country
• Belgium

• Manufacturer / Brand
• Siera; Belgien

• Year
• 1956–1960 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75335

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC81 UL84 UY42

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 3 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

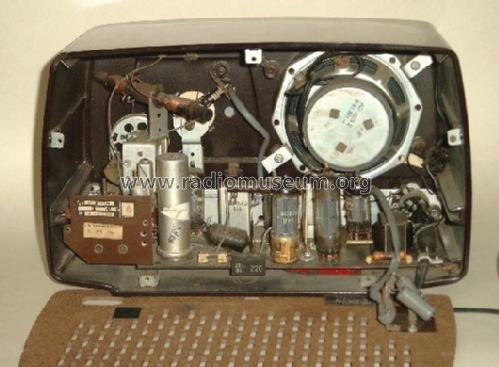

• Model: SA1011U - Siera; Belgien

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 325 x 198 x 155 mm / 12.8 x 7.8 x 6.1 inch

• Net weight (2.2 lb = 1 kg)
• 2.7 kg / 5 lb 15.2 oz (5.947 lb)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
