SA2034A
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 118105

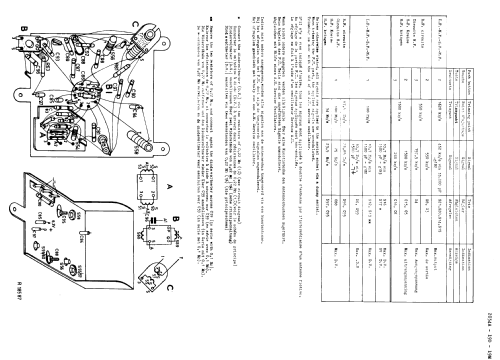

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: SA2034A - Siera; Belgien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 325 x 180 x 185 mm / 12.8 x 7.1 x 7.3 inch
- Notes
-
Siehe auch das Modell Mediator MD2034A.
- Price in first year of sale
- 2,495.00 BFr
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
- Other Models
-
Here you find 452 models, 413 with images and 181 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Siera; Belgien
Forum contributions about this model: Siera; Belgien: SA2034A
Threads: 1 | Posts: 6
Valve line-up: ECC85 ECH81 EF89 UABC80 UL84 UY85

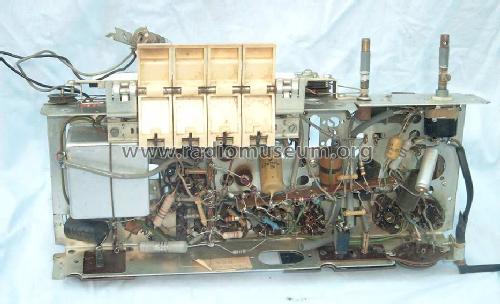

Now under repair. Will upload photos when complete.
Case is dark brown bakelite - unusually, the back is plastic (black).
Bought at a flea market near Arlon, Belgium for 25 EUR.
Ray BERRY, 31.Jul.07
