SA4233A /03
Siera; Belgien
- Country
- Belgium
- Manufacturer / Brand
- Siera; Belgien
- Year
- 1965 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285534
- Number of Tubes
- 4
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org

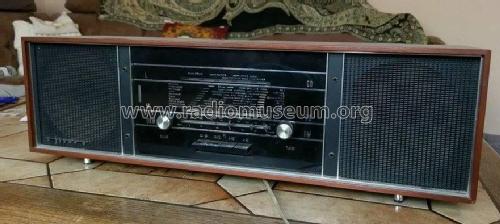

- Model: SA4233A /03 - Siera; Belgien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 640 x 200 x 165 mm / 25.2 x 7.9 x 6.5 inch
- Notes
-
Siera SA4233A ist technisch identisch zu Philips 22RB471
- Net weight (2.2 lb = 1 kg)
- 5.6 kg / 12 lb 5.4 oz (12.335 lb)
- Author
- Model page created by Raoul Tholl. See "Data change" for further contributors.
- Other Models
-
Here you find 452 models, 413 with images and 181 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Siera; Belgien
