SA51T186 /35

SA51T186 /35; Siera; Belgien (ID = 1639936) Television SA51T186 /35; Siera; Belgien (ID = 1639937) Television
SA51T186 /35; Siera; Belgien (ID = 1639939) Television SA51T186 /35; Siera; Belgien (ID = 1639940) Television
Use red slider bar for more.

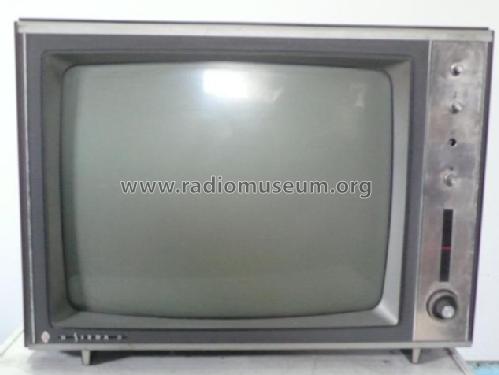

SA51T186 /35; Siera; Belgien (ID = 1639936) Television
Siera; Belgien: SA51T186 /35 [Television] ID = 1639936 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model SA51T186 /35, Siera; Belgien

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1968 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 7: PCL86 PCL85 PCL85 PL500 PY88 DY87 A50-120W
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 3 W (3.5 W max.)
from Radiomuseum.org Model: SA51T186 /35 - Siera; Belgien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 410 x 340 mm / 22 x 16.1 x 13.4 inch
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 7'000.00 PTE

Model page created by Manuel Albano Neves. See "Data change" for further contributors.



All listed radios etc. from Siera; Belgien
Here you find 435 models, 394 with images and 178 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
