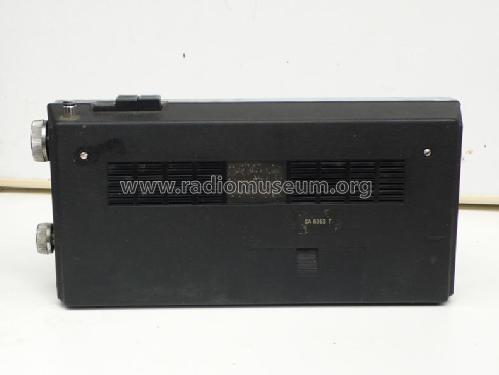

SA 6363 T

Siera; Belgien

  • Year
  • 1962 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 245366

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.5 W (0.6 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: SA 6363 T - Siera; Belgien
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 285 x 140 x 60 mm / 11.2 x 5.5 x 2.4 inch
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Price in first year of sale
  • 2,000.00 PTE
  • Author
  • Model page created by Manuel Albano Neves. See "Data change" for further contributors.
