S.Super Six (S.Super Zes) SS6

S.Super Six SS6; Siera; Belgien (ID = 474609) Radio

S.Super Six SS6; Siera; Belgien (ID = 1048415) Radio

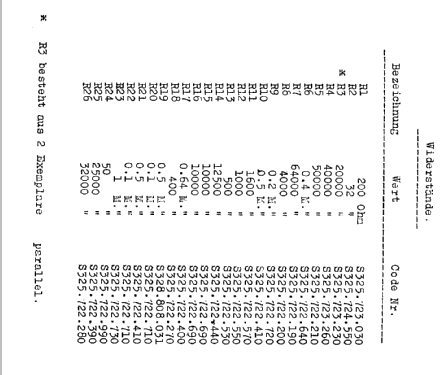

S.Super Six SS6; Siera; Belgien (ID = 1048416) Radio

S.Super Six SS6; Siera; Belgien (ID = 1939586) Radio
S.Super Six SS6; Siera; Belgien (ID = 223564) Radio S.Super Six SS6; Siera; Belgien (ID = 1205757) Radio
S.Super Six SS6; Siera; Belgien (ID = 1205758) Radio S.Super Six SS6; Siera; Belgien (ID = 1205759) Radio
S.Super Six SS6; Siera; Belgien (ID = 1205760) Radio S.Super Six SS6; Siera; Belgien (ID = 1249850) Radio
S.Super Six SS6; Siera; Belgien (ID = 1476259) Radio S.Super Six SS6; Siera; Belgien (ID = 1476260) Radio
S.Super Six SS6; Siera; Belgien (ID = 1476261) Radio S.Super Six SS6; Siera; Belgien (ID = 1476263) Radio
Use red slider bar for more.
S.Super Six SS6; Siera; Belgien (ID = 223564) Radio
Siera; Belgien: S.Super Six SS6 [Radio] ID = 223564 368x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model S.Super Six (S.Super Zes) SS6, Siera; Belgien:
From an auction catalogue.

Country:  Belgium
Manufacturer / Brand:  Siera; Belgien
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: S4VB SP4 SD4_Mullard 104V PM24M DW2X
Main principle Super-Heterodyne (Super in general); ZF/IF 115 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 103; 111; 116; 127; 135; 143; 155; 196; 210; 225; 240; 253 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: S.Super Six SS6 - Siera; Belgien
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Dimensions (WHD) 410 x 490 x 220 mm / 16.1 x 19.3 x 8.7 inch
Notes
2 Band reception:
  • LW: 850 - 2000 m.
  • BC: 200 - 600 m.
Tuning scale light bulb type: 8046 (6V, 500mA).
Loudspeaker Philips type 4281. Connectors for second loudspeaker and for pick-up.

This model is related to Ténor Super-Six but with different tubes.

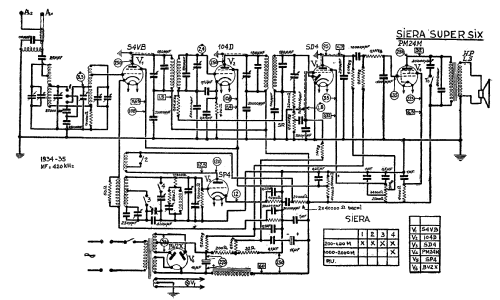

There is one schematic with this model coming from P.H.Brans (ID=474609). This schematic contains multiple errors: (as well as the one from J.G.R. Van Dijck, probably copied from Brans or vice-versa)

  1. Oscillator triode defined as SP4 (tetrode) - must be 104V (Mullard).
  2. I.F. tetrode defined as 104D (triode) - must be SP4 (Mullard).
  3. Rectifier BV2X is non-existent - must be DW2X (Mullard).
  4. I.F. defined at 420 kHz - very unlikely in 1933 - must be 115 kHz.

Schematic ID=1939586 has been updated with data from the booklet "Siera memento of tubes and models 1932-1946" verified with a real model in original condition.

Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 2,950.00 BFR
Collectors' prices
Mentioned in - - Manufacturers Literature (Siera memento of tubes and models 1932-1946)
Literature/Schematics (1) Röhren-Vademacum; P.H. Brans; Antwerpen (p.243)
Literature/Schematics (2) -- Schematic (Radio Schakelingen, J.G.R. van Dijck)

Model page created by John Koster. See "Data change" for further contributors.
