• Year
  • 1930
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 57972

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • TRF with regeneration
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

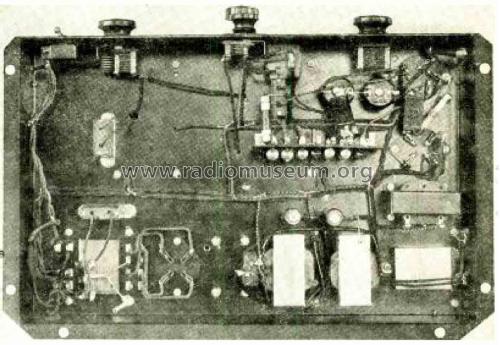

  • Model: Bearcat S-W - Silver - Marshall; Chicago, IL
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes
  • One dial (primary tuning control knob)

    Coverage from 16.6 to 200 meters with plug-in coils.

  • External source of data
  • Ernst Erb
  • Literature/Schematics (1)
  • Short Wave Craft Aug/Sept 1930 page 145
