Plata FM/AM 9 Transistor 2 Band 9FM-64
Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Country
- Japan
- Manufacturer / Brand
- Silver (Brand) - Shin-Shirasuna Electric Corp; Nagoya
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 284786
-
- alternative name: Shin-Shirasuna Electric Corp. || Shirasuna Denki Mfg. Co. Ltd. || Shirasuna (Shin) Electric Corp.
- Brand: Plata (brand)
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

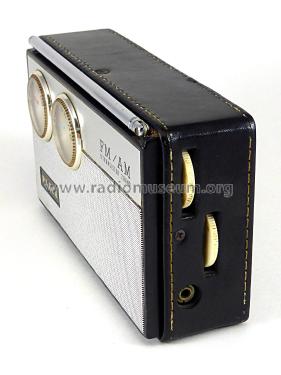

- Model: Plata FM/AM 9 Transistor 2 Band 9FM-64 - Silver Brand - Shin-Shirasuna
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 5.5 x 3.5 x 1.75 inch / 140 x 89 x 44 mm
- Notes
-
US civil defense marks (dots) on AM station dial. Leather swing handle. FM antenna positioned on top front of radio, which is not common. Circuit board shielded by thin cardboard protector with cutouts for battery, tuner, band switch and heat vent. Thin screen covers the heat vent.
Similar to Belcor model TR-2003.
- Author
- Model page created by Mark Skala. See "Data change" for further contributors.
