Long Wave Receiver
Silver - Marshall; Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Silver - Marshall; Chicago, IL
- Year
- 1929 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 57984

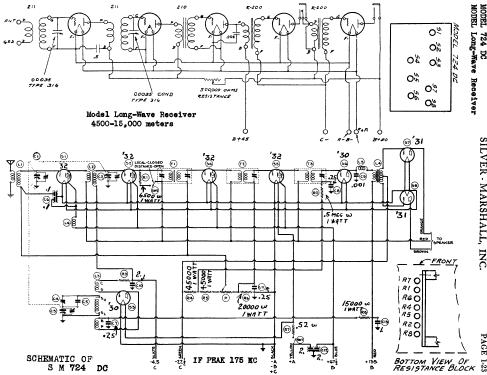

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- TRF without regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Long Wave and/or Very Low Frequency (VLF).
- Power type and voltage
- Storage and/or dry batteries / ? & 45 & 90 Volt
- from Radiomuseum.org
- Model: Long Wave Receiver - Silver - Marshall; Chicago, IL
- Notes
- Long-wave receiver (4000-15000 meters).
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
