Tube and Set Tester 445

Tube and Set Tester 445; Simpson Electric Co. (ID = 2391255) Equipment Tube and Set Tester 445; Simpson Electric Co. (ID = 2391256) Equipment
Tube and Set Tester 445; Simpson Electric Co. (ID = 2391254) Equipment Tube and Set Tester 445; Simpson Electric Co. (ID = 647990) Equipment
Tube and Set Tester 445; Simpson Electric Co. (ID = 647999) Equipment Tube and Set Tester 445; Simpson Electric Co. (ID = 648001) Equipment
Tube and Set Tester 445; Simpson Electric Co. (ID = 647996) Equipment Tube and Set Tester 445; Simpson Electric Co. (ID = 647998) Equipment
Use red slider bar for more.
Tube and Set Tester 445; Simpson Electric Co. (ID = 2391255) Equipment
Simpson Electric Co.: Tube and Set Tester 445 [Equipment] ID = 2391255 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tube and Set Tester 445, Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI

Country:  United States of America (USA)
Manufacturer / Brand:  Simpson Electric Co.; Chicago, IL - Lac du Flambeau, WI
Year: 1950 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Tube and Set Tester 445 - Simpson Electric Co.; Chicago,
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 16 x 6.25 x 12.5 inch / 406 x 159 x 318 mm
Notes

Model 445 combines a 20,000 ohms per volt Set Tester and a Plate Conductance Tube Tester. Patented "No Backlash" roll chart.

The tube tester dial indicates percentage of rated plate conductance. The volt-ohm-milliammeter set tester provides the same ranges as Model 260.

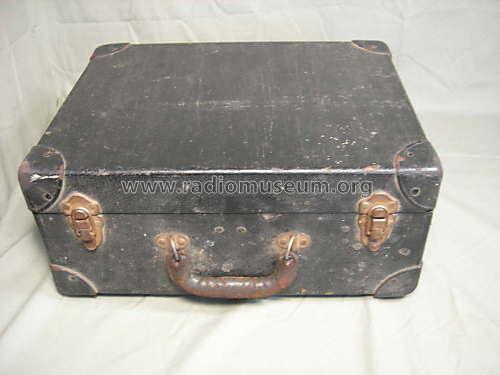

Tan and brown panel with brown leatherette case.

Optional high voltage probe for TV testing avalable, 1951 dealer's net price: $9.95
Price in 1951, dealer's net, including test leads and manual.

Net weight (2.2 lb = 1 kg) 20 lb (20 lb 0 oz) / 9.080 kg
Price in first year of sale 137.50 $
Mentioned in - - Manufacturers Literature (Catalog 1951)

Model page created by Meyer Rochwerger. See "Data change" for further contributors.
