• Year
  • 1961 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 260126

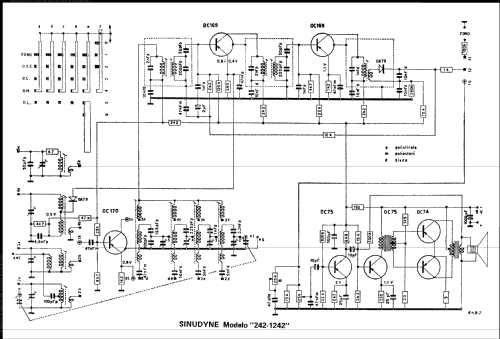

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Dry Batteries / 6 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: 242 - Sinudyne, Societá Elettronica
  • Mentioned in
  • -- Schematic (Esquemas de Radio-Receptores y Autorradios; Ed. Janzer; tomo 1)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
