• Year
  • 1967 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 306533

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 7 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

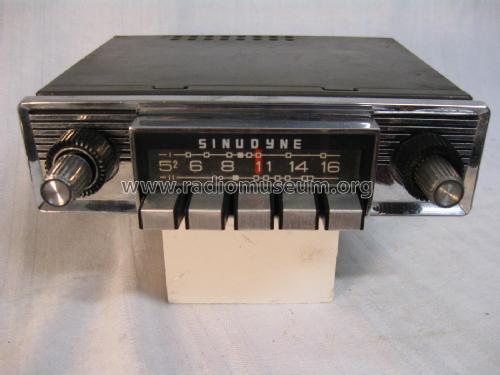

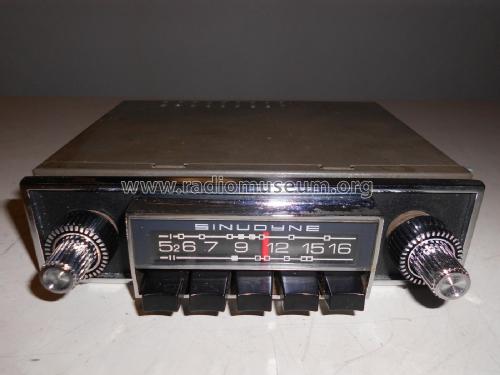

  • Model: 3312 - Sinudyne, Societá Elettronica
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 176 x 50 x 180 mm / 6.9 x 2 x 7.1 inch
  • Notes
  • controllo volume/tono - n. 5 stazioni preselezionabili - negativo a massa.

  • Net weight (2.2 lb = 1 kg)
  • 1.650 kg / 3 lb 10.1 oz (3.634 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
