For model SkanticRadio S41M, Skantic Radio AB, Stockholm:
Kaunas, Lithuania

Country:  Sweden
Manufacturer / Brand:  Skantic Radio AB, Stockholm
alternative name

Skandinaviska Radio AB
Year: 1953 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6X4 6AQ5 6AT6 EF40 6AT6 6X4 6AQ5 6AU6
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details Wire Recorder (or -Player); Radio with other functions
Power type and voltage Alternating Current supply (AC) / 110,127,150,220,250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: SkanticRadio S41M - Skantic Radio AB, Stockholm
Material Wooden case

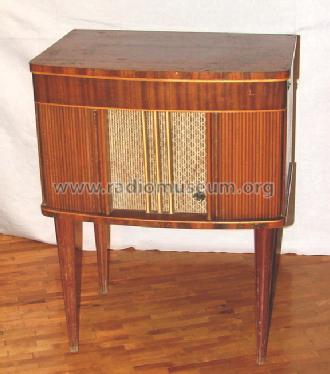

Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 550 x 720 x 410 mm / 21.7 x 28.3 x 16.1 inch

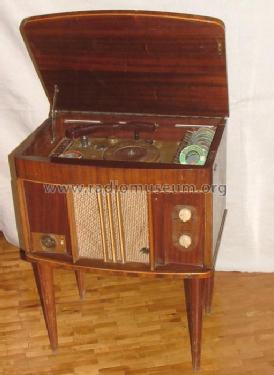

Notes Two band radio set with metal wire recorder. Also can used as 78 RPM phonograph. Magnetoelectric tone arm with metal needle for record player. Metal wire spool Ø 70 mm.
Source of data - - Data from my own collection

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
