• Country
• Sweden

• Manufacturer / Brand
• Skantic Radio AB, Stockholm

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 268250

• • alternative name: Skandinaviska Radio AB

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF121 AF126 AF126 AF126 AC122 AC122 AC117 AC175 OA90 E37,5C5 BA110 OA90 OA90 AA119 AA119 AA119 AA119 BZY87

• Main principle
• Superheterodyne (common); ZF/IF 462/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / D: 6 x 1.5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

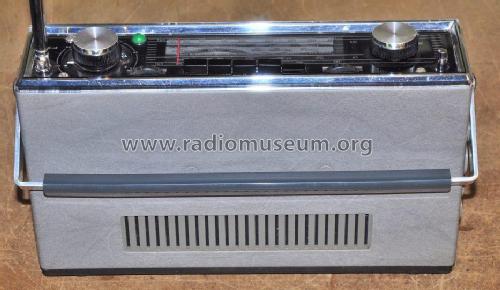

• Model: Fantom SB4873 Ser.1 Ch= 6733 serie 1 - Skantic Radio AB, Stockholm

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 285 x 180 x 75 mm / 11.2 x 7.1 x 3 inch

• Notes

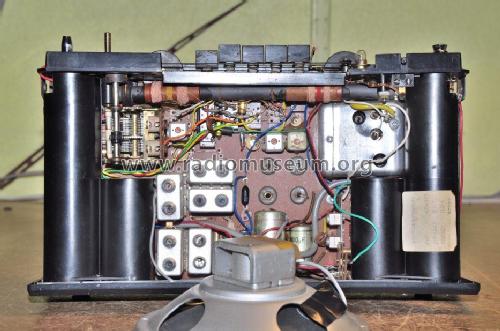

• The unit has a built in and effective ferrite antenna.
  There are 3 mechanical presets for FM.
  External antenna can be switched on/off.

  Wave bands:

  • LW 150-280 kHz
  • MW 520-1620 kHz
  • FM 87-101 MHz

  Connections for car antenna, battery eliminator BE92, car cassette, PU/tape, extra speaker or earphone.

  Case anthracite gray, light gray or wine red or wooden case in teak or jakaranda

  Luxor version of this radio is Luxor Melodi serie 1



• Net weight (2.2 lb = 1 kg)
• 1.9 kg / 4 lb 3 oz (4.185 lb)

• Author
• Model page created by Ola Gröndalen. See "Data change" for further contributors.
