Parad 6664

Parad 6664; Skantic Radio AB, (ID = 1533479) Television

Parad 6664; Skantic Radio AB, (ID = 1533480) Television

Parad 6664; Skantic Radio AB, (ID = 1533481) Television

Parad 6664; Skantic Radio AB, (ID = 1533482) Television

Parad 6664; Skantic Radio AB, (ID = 1533492) Television
Parad 6664; Skantic Radio AB, (ID = 499203) Television
Use red slider bar for more.
Parad 6664; Skantic Radio AB, (ID = 499203) Television

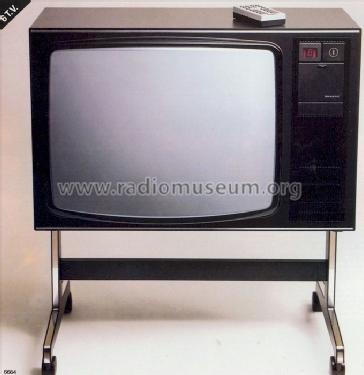

Skantic Radio AB,: Parad 6664 [Television] ID = 499203 681x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Parad 6664, Skantic Radio AB, Stockholm:
Original-Prospect Catalogue Skantic (S) ~1979

Country:  Sweden
Manufacturer / Brand:  Skantic Radio AB, Stockholm
alternative name

Skandinaviska Radio AB
Year: 1979 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out 14 W (unknown quality)
from Radiomuseum.org Model: Parad 6664 - Skantic Radio AB, Stockholm
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 760 x 500 x 390 mm / 29.9 x 19.7 x 15.4 inch
Notes

Skantic Parad, 6664;
26" in-line CRT PAL color TV with electronic CCIR B/G VHF-/UHF tuner with 8 presets,
made by Luxor.

Gemäss Service Anweisung gilt der gezeigte Schaltplan auch für die Modelle:
Skantic: Parad 6674
Skantic: Favorit 5664 und 5674
Luxor: Kavalkad Expert 5664 und 5674
Luxor: Horisont Expert 6664 und 6674

Net weight (2.2 lb = 1 kg) 40 kg / 88 lb 1.7 oz (88.106 lb)
Mentioned in -- Original prospect or advert (Catalogue Skantic (S) ~1979)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Skantic Radio AB, Stockholm
Here you find 61 models, 59 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
