SBT-490 Ser. 2

SBT-490 Ser. 2; Skantic Radio AB, (ID = 1065958) Radio SBT-490 Ser. 2; Skantic Radio AB, (ID = 1065959) Radio
SBT-490 Ser. 2; Skantic Radio AB, (ID = 1065961) Radio
Use red slider bar for more.
SBT-490 Ser. 2; Skantic Radio AB, (ID = 1065958) Radio

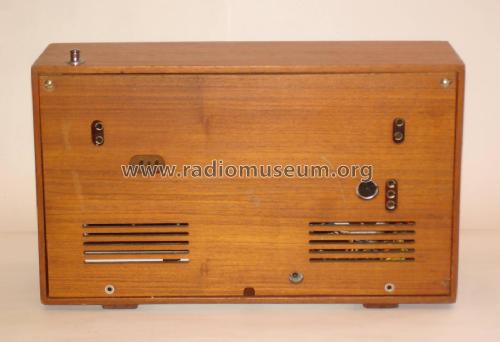

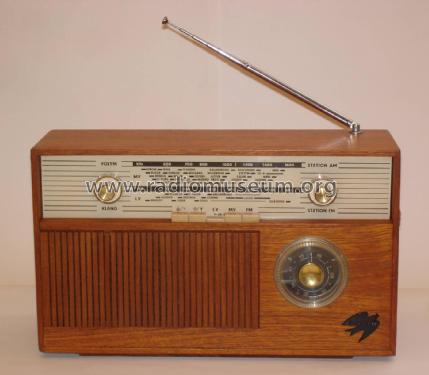

Skantic Radio AB,: SBT-490 Ser. 2 [Radio] ID = 1065958 722x430
Select picture or schematic to display from thumbnails on the right and click for download.
For model SBT-490 Ser. 2, Skantic Radio AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Skantic Radio AB, Stockholm
alternative name

Skandinaviska Radio AB
Year: 1966 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 6 x 1,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: SBT-490 Ser. 2 - Skantic Radio AB, Stockholm
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 355 x 210 x 120 mm / 14 x 8.3 x 4.7 inch
Notes Besonderheit: Auf UKW können 3 Stationen mechanisch "festgestellt" werden (das Senderwahlrad rastet dann ein). Eingangsbuchsen für externe Stromversorgung (9V), für TA sowie Antenne, getrennt für AM und FM, und DIN-Buchse.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Source of data - - Data from my own collection

Model page created by Volker Potthast. See "Data change" for further contributors.
