SBT 505

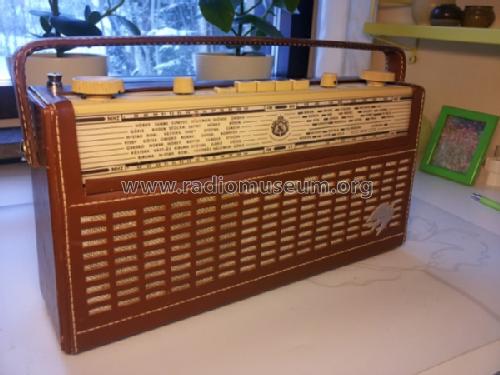

SBT 505; Skantic Radio AB, (ID = 1415432) Radio SBT 505; Skantic Radio AB, (ID = 1353845) Radio
SBT 505; Skantic Radio AB, (ID = 1353846) Radio SBT 505; Skantic Radio AB, (ID = 1353848) Radio
SBT 505; Skantic Radio AB, (ID = 1353850) Radio SBT 505; Skantic Radio AB, (ID = 1415433) Radio
Use red slider bar for more.
SBT 505; Skantic Radio AB, (ID = 1415432) Radio
Skantic Radio AB,: SBT 505 [Radio] ID = 1415432 933x554
Select picture or schematic to display from thumbnails on the right and click for download.
For model SBT 505, Skantic Radio AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Skantic Radio AB, Stockholm
alternative name

Skandinaviska Radio AB
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF102 AF115 AF137 AF138 AF137 AC126 AC126 unknown_tr unknown_tr
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: SBT 505 - Skantic Radio AB, Stockholm
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 340 x 177 x 97 mm / 13.4 x 7 x 3.8 inch
Net weight (2.2 lb = 1 kg) 2.415 kg / 5 lb 5.1 oz (5.319 lb)

Model page created by Erik Hedenblad. See "Data change" for further contributors.
