• Country
• United States of America (USA)

• Manufacturer / Brand
• Electrical Research Laboratories Inc. (Erla); Chicago, Illinois

• Year
• 1932 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 58135

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 35 24 47 80

• Main principle
• TRF without regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

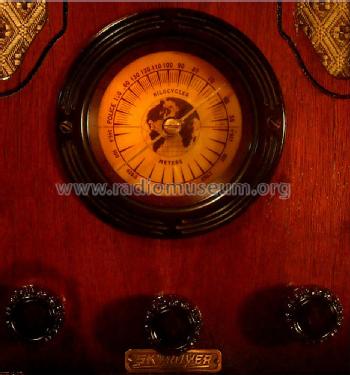

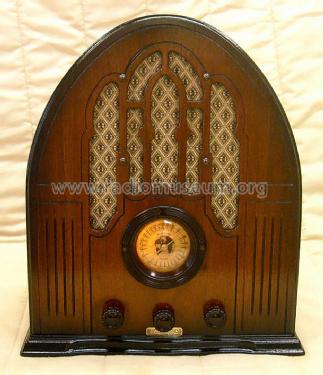

• Model: Sky Rover [4 Tube] - Electrical Research

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 12 x 14 x 7.25 inch / 305 x 356 x 184 mm

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Mentioned in
• Misc. Page 4-11

• Other Models

• Here you find 133 models, 47 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
