• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Skyscraper (Brand) Bond & Bond Ltd.;Auckland

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347265

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1P5GT 1A7GT 1P5GT 1H5GT 1A5GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / 230 or 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

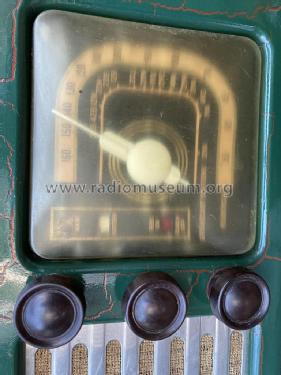

• Model: Skyscraper Portable RJ - Skyscraper Brand Bond & Bond

• Shape

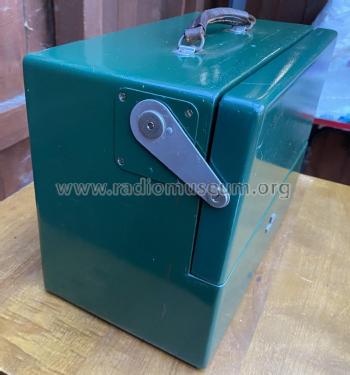

• Portable set > 8 inch (also usable without mains)

• Notes

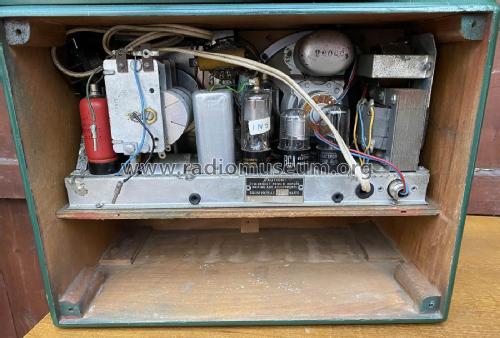

• 6 valve broadcast (MW) superhet with RF stage AC/Battery portable receiver available in Rich Morocco Red or Green Crocodile finish.

  Manufactured by Radio (1936) Ltd.

  See also Ultimate RJ.

• Price in first year of sale
• 36.00 NZ £

• Mentioned in
• The Golden Age of Radio in the Home 1986 (Page 87 (Ultimate version))

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
