• Year
  • 1958 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 302921

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 3R12: 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

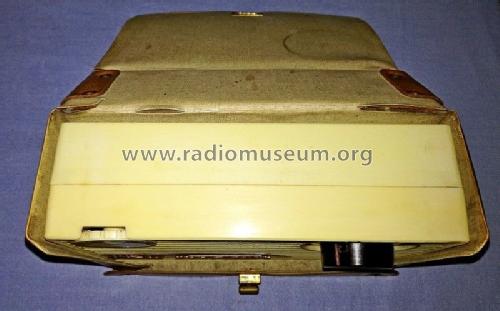

  • Model: Transistor 611 [Early] - SNT Società Negro e Torretta;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 190 x 120 x 60 mm / 7.5 x 4.7 x 2.4 inch
  • Notes
  • From the shape of the transistors this model seems to be earlier
    than the similar model SNT 611

  • Net weight (2.2 lb = 1 kg)
  • 0.440 kg / 0 lb 15.5 oz (0.969 lb)
  • Author
  • Model page created by Aldo Andreani. See "Data change" for further contributors.
