• Country
• Japan

• Manufacturer / Brand
• Soar Corporation; Hanishinagun

• Year
• 1975 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 328298

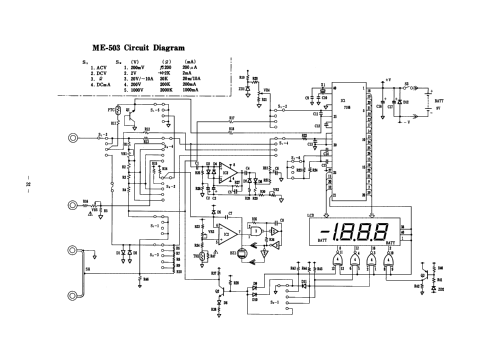

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• 2SC1957 2SC536 2SA608 ICL7106 CD4011 CD4077 TL062 ICL8069 1N4001 1S1588 1N60 RD6.2E

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / PP3: 1 x 9 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Multimeter ME-503 - Soar Corporation; Hanishinagun

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Soar Corporation, Digital Multimeter ME-503

  • DCV: 200mV to 1000V in 5 steps
  • ACV: 200mV to 1000V in 5 steps. Separate terminal for 1000V (& 10A)
  • DCA: 200μA to 1A in 5 steps. Separate terminal for 10A (& 1000V)
  • Res: 200Ω to 2MΩ in 5 steps (buzzer for continuity in 200Ω range)
