• Country
• Great Britain (UK)

• Manufacturer / Brand
• Sobell Ind., Slough

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169349

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.37 inch = 8.6 cm

• Material
• Various materials

• from Radiomuseum.org

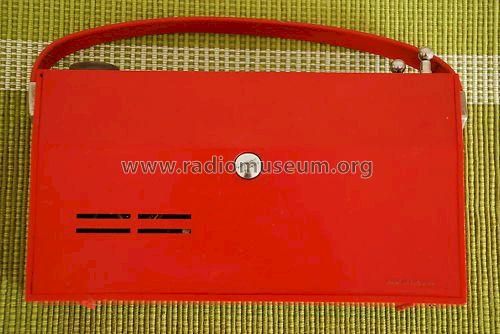

• Model: S314 - Sobell Ind., Slough

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Portable radio with sockets for car aerial, earphone, & tape recorder. 5.7-16 Mhz. SW band Same circuit as GEC model G814 & McMichael model M114.

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
