Cadre Anti-Parasites

Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1033653) RF-Ampl.
Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1283612) RF-Ampl. Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1141887) RF-Ampl.
Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1276980) RF-Ampl. Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1277147) RF-Ampl.
Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1283611) RF-Ampl. Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1283614) RF-Ampl.
Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1283615) RF-Ampl. Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1283617) RF-Ampl.
Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1739969) RF-Ampl. Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1739970) RF-Ampl.
Use red slider bar for more.

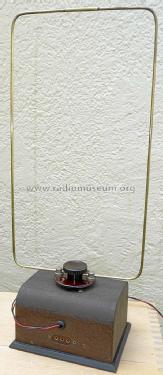

Cadre Anti-Parasites ; SOCORA; Bruxelles (ID = 1283612) RF-Ampl.
SOCORA; Bruxelles: Cadre Anti-Parasites [RF-Ampl.] ID = 1283612 610x1400
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cadre Anti-Parasites, SOCORA; Bruxelles

Country:  Belgium
Manufacturer / Brand:  SOCORA; Bruxelles
Year: 1961/1962 Category: RF (Radio Frequency-) Amplifier
Valves / Tubes 1: EF80
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Powered by external power supply or a main unit. / AC 6,3 & DC 250 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Cadre Anti-Parasites - SOCORA; Bruxelles
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 200 x 540 x 150 mm / 7.9 x 21.3 x 5.9 inch
Notes Socora Cadre Anti-Parasites;
Single loop, controls for GO/OC/PO & accord, kit version.
A version with EF42 exists also.
Net weight (2.2 lb = 1 kg) 0.950 kg / 2 lb 1.5 oz (2.093 lb)
Source of data -- Schematic
Mentioned in Radio-Bourse 1961/1962

Model page created by a member from A. See "Data change" for further contributors.
