Amati EK69

Amati EK69; Sondyna AG; Zürich- (ID = 20363) Radio
Use red slider bar for more.
Amati EK69; Sondyna AG; Zürich- (ID = 20363) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK3 EBF2 EF6 EL3 EZ4
Main principle Superheterodyne (common); ZF/IF 465 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Amati EK69 - Sondyna AG; Zürich-Effretikon
Material Wooden case
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

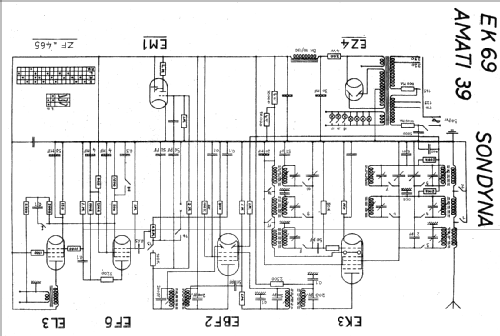

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
