• Year
  • 1948–1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 13628

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch
  • Material
  • Wooden case
  • from Radiomuseum.org

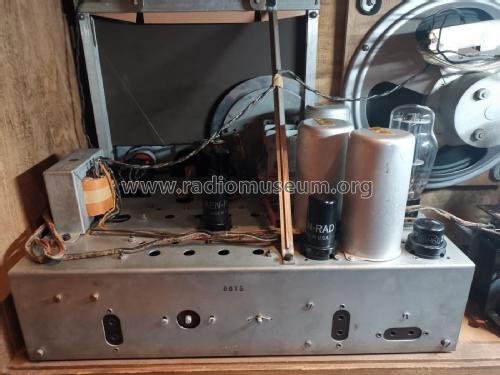

  • Model: Stradivari E4830 - Sondyna AG; Zürich-Effretikon
  • Dimensions (WHD)
  • 620 x 380 x 290 mm / 24.4 x 15 x 11.4 inch
  • Notes
  • 5V4G
  • Price in first year of sale
  • 985.00 SFr
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Thali-Schemasammlung und Tungsram-Röhrenbestückung.
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
