VE55

VE55; Sondyna AG; Zürich- (ID = 2321618) Radio VE55; Sondyna AG; Zürich- (ID = 2321636) Radio

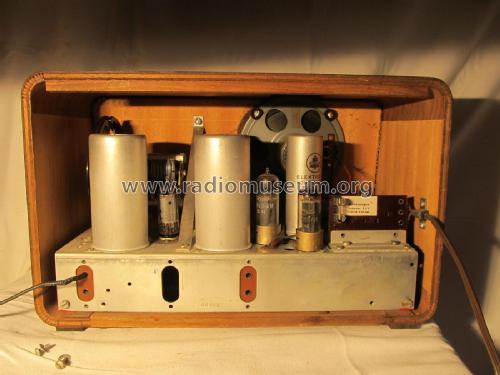

VE55; Sondyna AG; Zürich- (ID = 2321625) Radio VE55; Sondyna AG; Zürich- (ID = 2321631) Radio
VE55; Sondyna AG; Zürich- (ID = 2321635) Radio VE55; Sondyna AG; Zürich- (ID = 2321634) Radio

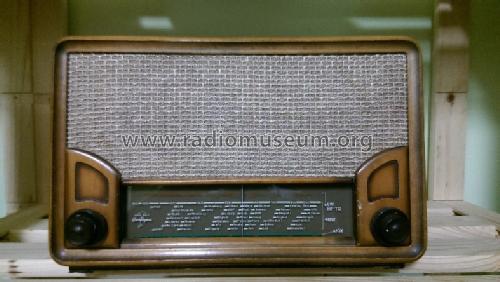

VE55; Sondyna AG; Zürich- (ID = 1652742) Radio VE55; Sondyna AG; Zürich- (ID = 1652743) Radio
Use red slider bar for more.

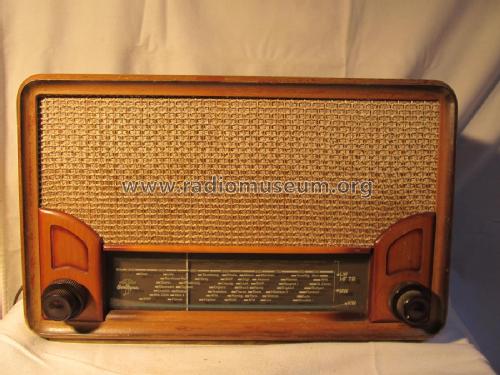

VE55; Sondyna AG; Zürich- (ID = 2321618) Radio
Sondyna AG; Zürich-: VE55 [Radio] ID = 2321618 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model VE55, Sondyna AG; Zürich-Effretikon

Country:  Switzerland
Manufacturer / Brand:  Sondyna AG; Zürich-Effretikon
Year: 1952 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EAF42 EBC41 EL41 EZ40
schematic requested
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: VE55 - Sondyna AG; Zürich-Effretikon
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 230 x 160 mm / 14.6 x 9.1 x 6.3 inch

Model page created by Karsten Hauger. See "Data change" for further contributors.
