Lux 3 sans réglage

Lux 3 ; Sonneclair, (ID = 1278877) Radio Lux 3 ; Sonneclair, (ID = 1278876) Radio
Lux 3 ; Sonneclair, (ID = 1278879) Radio Lux 3 ; Sonneclair, (ID = 1278880) Radio

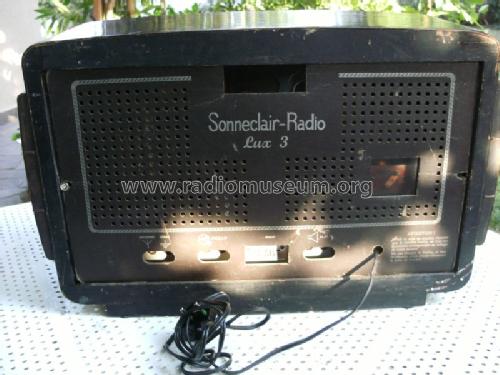

Lux 3 ; Sonneclair, (ID = 1278881) Radio Lux 3 ; Sonneclair, (ID = 1344460) Radio
Lux 3 ; Sonneclair, (ID = 1344461) Radio Lux 3 ; Sonneclair, (ID = 1344462) Radio
Use red slider bar for more.
Lux 3 ; Sonneclair, (ID = 1278877) Radio
Sonneclair,: Lux 3 [Radio] ID = 1278877 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lux 3 sans réglage, Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge

Country:  France
Manufacturer / Brand:  Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6AU6 ECH81 EBF80 EL84 EM34 EZ80
Main principle Superhet with RF-stage
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 115- 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Lux 3 [sans réglage] - Sonneclair, Hannecart & Dannay
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 500 x 340 x 220 mm / 19.7 x 13.4 x 8.7 inch
Notes

4 gammes d'ondes dont 1 bande étalée (BE). Clavier 7 touches dont commutation antenne cadre. Cadre à air incorporé orientable.

Voir aussi modèle Lux 3 (avec réglage) avec 2 stations préréglées LUX (Luxembourg) et EUR1 (Europe No.1).

Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

Model page created by Giuseppe Tedesco. See "Data change" for further contributors.
