Selection II (2)

Selection II ; Sonneclair, (ID = 308500) Radio
Selection II ; Sonneclair, (ID = 400799) Radio Selection II ; Sonneclair, (ID = 400800) Radio
Selection II ; Sonneclair, (ID = 400801) Radio
Use red slider bar for more.

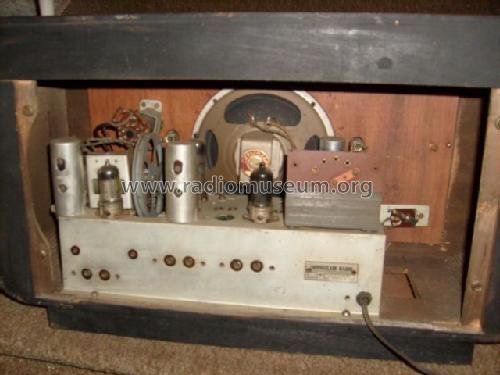

Selection II ; Sonneclair, (ID = 400799) Radio
Sonneclair,: Selection II [Radio] ID = 400799 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Selection II (2), Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge

Country:  France
Manufacturer / Brand:  Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EAF42 EL41 GZ40 EM4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Selection II - Sonneclair, Hannecart & Dannay
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes The Sonneclair model Selection II (2) has "ears" and is a similar model as Lux 6 and Lux 50 (5 tubes) - also with "ears" or in French "oreilles" - but still a bit different (plastic scale holder) than the two which have the same cabinet.
External source of data Serge Laffont/Martin Renoth


All listed radios etc. from Sonneclair, Hannecart & Dannay; Fourmies, Paris, Montreuil, Montrouge
Here you find 119 models, 101 with images and 21 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
