A-11 Peter Pan Ch= A

A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 442004) Radio

A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 627147) Radio
A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747854) Radio A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 801271) Radio
A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1474418) Radio A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1666894) Radio
A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747855) Radio A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747856) Radio
A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747857) Radio A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747858) Radio
A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747859) Radio A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747860) Radio
Use red slider bar for more.
A-11 Peter Pan Ch= A; Sonora Radio & Telev (ID = 1747854) Radio

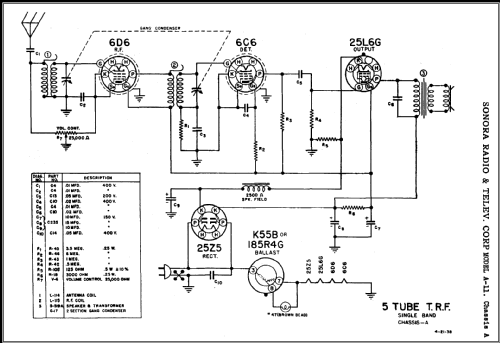

Sonora Radio & Telev: A-11 Peter Pan Ch= A [Radio] ID = 1747854 933x627
Select picture or schematic to display from thumbnails on the right and click for download.
For model A-11 Peter Pan Ch= A, Sonora Radio & Telev. Corp.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Sonora Radio & Telev. Corp.; Chicago (IL)
alternative name

Sonora Electric Phono
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6D6 6C6 25L6G 25Z5
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: A-11 Peter Pan Ch= A - Sonora Radio & Telev. Corp.;
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 11.25 x 6.625 x 5.625 inch / 286 x 168 x 143 mm
Notes

Ballast tube resistor K55B or 185R4G. Brown bakelite or Ivory finish.

External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 16 = ca. 1948 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Table Top Radios Vol. 1 Stein 98 (page 147.)
Literature/Schematics (3) -- Original prospect or advert (The Sonora Folder for 1939.)
