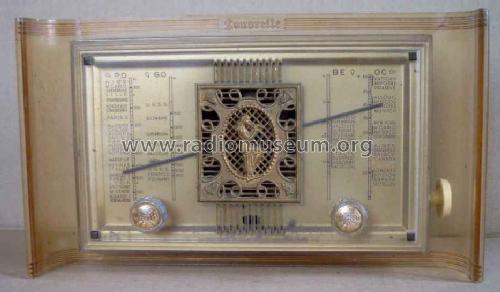

Sonorette II (2) avec cadre

Sonorette II ; Sonora-Radio; Paris, (ID = 266890) Radio Sonorette II ; Sonora-Radio; Paris, (ID = 1631489) Radio
Sonorette II ; Sonora-Radio; Paris, (ID = 1417756) Radio Sonorette II ; Sonora-Radio; Paris, (ID = 1417759) Radio
Sonorette II ; Sonora-Radio; Paris, (ID = 1631491) Radio Sonorette II ; Sonora-Radio; Paris, (ID = 1631492) Radio
Sonorette II ; Sonora-Radio; Paris, (ID = 1631493) Radio Sonorette II ; Sonora-Radio; Paris, (ID = 1631494) Radio
Sonorette II ; Sonora-Radio; Paris, (ID = 1631496) Radio
Use red slider bar for more.
Sonorette II ; Sonora-Radio; Paris, (ID = 266890) Radio
Sonora-Radio; Paris,: Sonorette II [Radio] ID = 266890 750x503
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sonorette II (2) avec cadre, Sonora-Radio; Paris, Puteaux:
From the collection of TSF-Radio, France.

Country:  France
Manufacturer / Brand:  Sonora-Radio; Paris, Puteaux
Year: 1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: Sonorette II [avec cadre] - Sonora-Radio; Paris, Puteaux
Material Special material, described in the notes.
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 295 x 170 x 130 mm / 11.6 x 6.7 x 5.1 inch
Notes

4 gammes d'ondes dont 1 bande étalée (BE). Cadre anti-parasites placé autour du boitier en plexiglass coudé.

Fonctione sur accu de 6 ou 12 volts à l'aide du adaptateur Bled-Sonorette.

Ce modèle existe aussi en version "normale" sans cadre incorporé.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Mentioned in -- Schematic

Model page created by John Koster. See "Data change" for further contributors.
