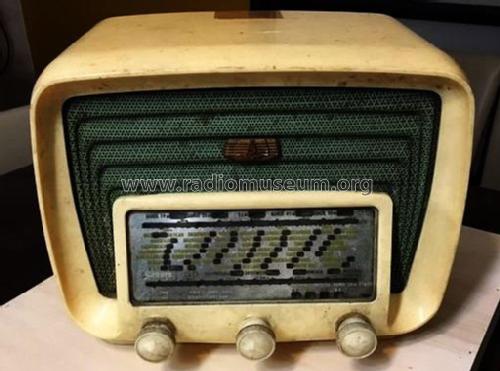

Sonorette Princesse tous courants
Sonora-Radio; Paris, Puteaux
- Country
- France
- Manufacturer / Brand
- Sonora-Radio; Paris, Puteaux
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 276106
leboncoin.fr/collection/2448529487.htm
leboncoin.fr/collection/2448529487.htm
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- AC/DC-set / 110-130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sonorette Princesse [tous courants] - Sonora-Radio; Paris, Puteaux
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 280 x 215 x 180 mm / 11 x 8.5 x 7.1 inch
- Notes
-
4 gammes d'ondes dont 1 bande étalée (BE). Cadre anti-parasites incorporé.
Voir aussi Sonora Sonorette Princesse pour courant alternatif.
- Net weight (2.2 lb = 1 kg)
- 2.9 kg / 6 lb 6.2 oz (6.388 lb)
- Author
- Model page created by Roberto Gabba. See "Data change" for further contributors.
