AF5; Sonora-Radio; Paris, (ID = 2435033) Radio
Sonora-Radio; Paris,: AF5 [Radio] ID = 2435033 770x994
Select picture or schematic to display from thumbnails on the right and click for download.

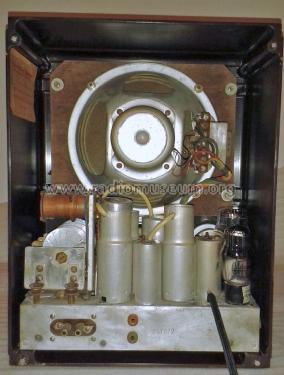

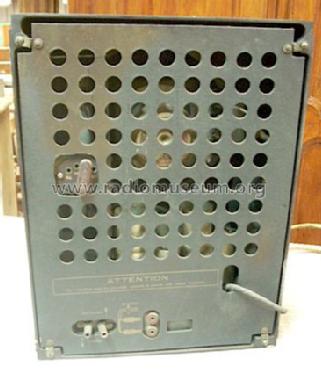

For model AF5, Sonora-Radio; Paris, Puteaux

Country:  France
Manufacturer / Brand:  Sonora-Radio; Paris, Puteaux
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 78 6A7 6B7 43 25Z5
Main principle Superhet with RF-stage; ZF/IF 135 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out 0.9 W (unknown quality)
from Radiomuseum.org Model: AF5 - Sonora-Radio; Paris, Puteaux
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 280 x 380 x 160 mm / 11 x 15 x 6.3 inch
Notes

2 gammes d'ondes : PO de 200 à 850 m, GO de 1000 à 1950 m. Antifading agissant sur lampes HF 78 et changeuse 6A7. Réglage de tonalité. Lampes de cadran : 2 x 6 V / 0.1 A.

Coffret bakélite, indicateurs de puissance et de tonalité.

Alimentation sur tous courants continus et alternatifs, 25-50 périodes, 110 volts. Pour alimentation par 130 ou 220 V, un cordon résistant de 50 ou 290 ohms doit être employé.

Même châssis en ébénisterie luxe, voir AF35.

Price in first year of sale 1'295.00 FRF
Circuit diagram reference La Documentation du Revendeur - Radio
Mentioned in -- Original prospect or advert (L'Antenna, 09.09.1934)

Model page created by Peter Hoddow. See "Data change" for further contributors.
