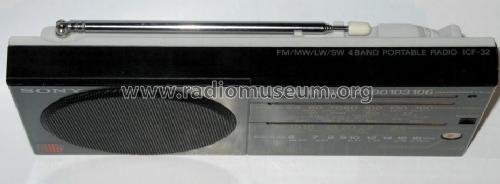

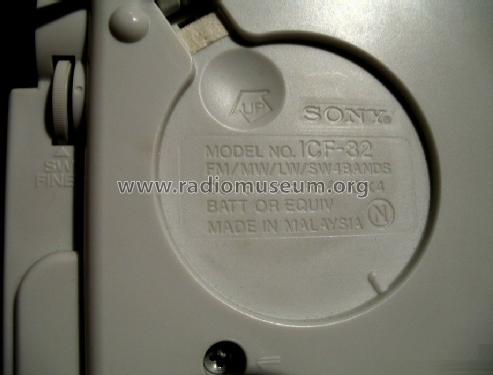

4 Band Receiver ICF-32 European

4 Band Receiver ICF-32; Sony Corporation; (ID = 1134750) Radio 4 Band Receiver ICF-32; Sony Corporation; (ID = 853179) Radio
4 Band Receiver ICF-32; Sony Corporation; (ID = 1134749) Radio 4 Band Receiver ICF-32; Sony Corporation; (ID = 1134746) Radio
4 Band Receiver ICF-32; Sony Corporation; (ID = 1134751) Radio 4 Band Receiver ICF-32; Sony Corporation; (ID = 853193) Radio
4 Band Receiver ICF-32; Sony Corporation; (ID = 1134748) Radio 4 Band Receiver ICF-32; Sony Corporation; (ID = 853183) Radio
4 Band Receiver ICF-32; Sony Corporation; (ID = 853184) Radio 4 Band Receiver ICF-32; Sony Corporation; (ID = 853187) Radio
Use red slider bar for more.
4 Band Receiver ICF-32; Sony Corporation; (ID = 1134750) Radio
Sony Corporation;: 4 Band Receiver ICF-32 [Radio] ID = 1134750 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Band Receiver ICF-32 European, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1986 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 4 × 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: 4 Band Receiver ICF-32 [European] - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 106 x 35 mm / 9.1 x 4.2 x 1.4 inch
Notes

FM range 88 - 106 MHz.

Version especially adapted for Europe with European station names for MW.

Fine tuning dial on side, Hi/Lo tone switch, local/distant switch.
Ext. Power Jack: DC 6 V. AC Adaptor: AC-180A.

See also the variant ICF-32 [UK-Canada] with an FM range of 88 - 108 MHz.

Mentioned in Sony '86, German Walkman and Radio Catalog
Documents regarding this model
  Operating Instructions Sony ICF-32 FM/MW/LW/SW 4 Band Receiver 294 KB
