Compact Disc Player CDP-C35

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1990 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 317061

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 120 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CDP-C35 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 110 x 385 mm / 16.9 x 4.3 x 15.2 inch
  • Notes

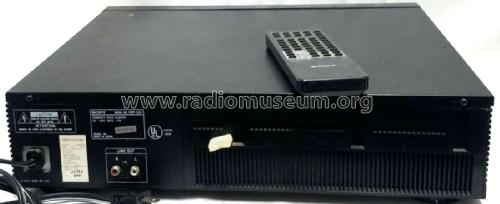

  • A stereo hi-fi 5 disc carousel changer compact disc player with remote control (RM-D306). Dual D/A Converter System, 4 Times Oversampling Digital Filter, RCA phono sockets for Line Output, jack for headphones with volume control.

    Specification
    System  Compact disc digital audio system
    Laser (KSS-240A) Semiconductor laser (λ = 780 nm)
    Emission duration: continuous
    Frequency response 2 Hz - 20 kHz (+1 dB, -1.2 dB)
    Signal to noise ratio More than 93 dB
    Dynamic range More than 90 dB
    Harmonic distortion Less than 0.05% (1 kHz)
    Channel separation More than 90 dB (1 kHz)
    Wow and flutter Below measurable limit
    Outputs
    Line Out
    (phono jacks)    		 Output level 2 V (at 50 kΩ)
    Load impedance over 10 kΩ
    Headphones
    (stereo phone jack)    		 Output level 0 - 10 mW (variable)
    (at 32 Ω)

    Versions/Power Requirements
    US: / 120V AC 60Hz

    Power consumption:   11 W

    Similar to the Sony CDP-C201, CDP-C205 & CDP-305 Compact Disc Players.

  • Net weight (2.2 lb = 1 kg)
  • 4.9 kg / 10 lb 12.7 oz (10.793 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual CDP-C35/C201/C205/C305 dated 1990.4)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
