Discman D-50Mk II (Mark 2)

Sony Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1986 ?
  • Categoría
  • Registrador o reproductor de sonido o visual
  • Radiomuseum.org ID
  • 212839

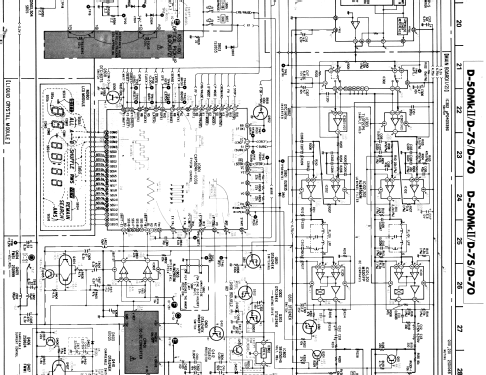

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de transistores
  • Hay semiconductores.
  • Semiconductores
  • Principio principal
  • Amplificador de Audio
  • Gama de ondas
  • - no hay
  • Especialidades
  • CD-Player, -Writer, MD, MOD (audio)
  • Tensión de funcionamiento
  • Pilas + jack (etc.) para alimentación externa. / Pb: 1 x 6 / AA: 8 x 1.5 / 9 Volt
  • Altavoz
  • - Este modelo usa amplificador externo de B.F.
  • Material
  • Metálico
  • de Radiomuseum.org
  • Modelo: Discman D-50Mk II - Sony Corporation; Tokyo
  • Forma
  • Portátil de bolsillo , menor de 20cm.
  • Ancho, altura, profundidad
  • 126.9 x 31.5 x 125.9 mm / 5 x 1.2 x 5 inch
  • Anotaciones

  • A small portable stereo compact disc player. Jacks for DC In 9V, Line Out and Phones.

    Features
    • AMS (Automatic Music Sensor) for quick location of selections
    • Search function for quick location of a desired point in a particular selection
    • RMS (Random Music Sensor) allows selections to be played in a specified order.
    • Shuffle-play function repeatedly plays selections in a random order.
    • Repeat functions for the whole disc and for a particular portion
    • Digital readout display—the track number on the disc and the elapsed or
      remaining playing time are shown on the LCD (Liquid Crystal Display) window.

    Specification
    System Compact disc digital audio system
    Disc Compact Disc
    Error Correction Sony Super Strategy Cross Interleave Reed Solomon Code
    Number of channels 2
    D-A conversion 16-bit linear
    Total harmonic distortion Less than 0.008%
    Dynamic range More than 90dB (1 kHz)
    Wow and flutter Below measurable limit
    Outputs (at 9V input level)
    Line output
    (stereo minijack)    		 Output level 1 6V rms
    Load impedance over 10 kΩ
    Headphones
    (stereo minijack)    		 30mW + 30mW at 32 Ω

    Power requirements
    6V Lead acid battery (closed type) using Sony BP-200 rechargeable battery pack (supplied)
    12V Eight IEC designation LR6 alkaline batteries (size AA) using Sony EBP-380 battery case (optional)
    DC IN 9V jack accepts;
    Sony DCC-120 car battery cord (optional) for use on 12V car battery
    Sony AC power adaptor (supplied) :
      UK Model: AC-930A 240V AC 50 Hz
      AUS Model: AC-930 240V AC 50 Hz
      AEP, French Model: AC-930AEP 220V AC 50 Hz
      E Model: AC-950W 110, 120, 220 or 240V AC 50/60 Hz

    Power consumption 2.6W DC

    Similar to the Sony D-7S (US & Canada models) Discman and the Sony D-70 (Dutch model) Discman.

  • Peso neto
  • 0.510 kg / 1 lb 2 oz (1.123 lb)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service Manuals D-50MkII/D-7S/D-70 dated 1986)
  • Autor
  • Modelo creado por un miembro de A. Ver en "Modificar Ficha" los participantes posteriores.
