ICF 380 ; Sony Corporation; (ID = 1487013) Radio
Sony Corporation;: ICF 380 [Radio] ID = 1487013 842x505
Select picture or schematic to display from thumbnails on the right and click for download.

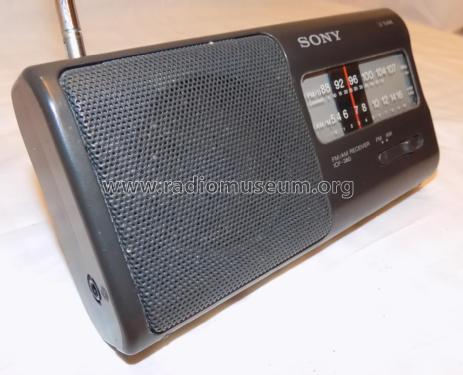

For model ICF 380, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1991 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. CXA1019S
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: ICF 380 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 155 x 79 x 35 mm / 6.1 x 3.1 x 1.4 inch
Net weight (2.2 lb = 1 kg) 0.260 kg / 0 lb 9.2 oz (0.573 lb)
Literature/Schematics (1) -- Original-techn. papers. (Service Manual)

Model page created by Salvador Galan-Ocaña. See "Data change" for further contributors.
