Sistema Compacto de Som MHC-RG590S

Sony do Brasil, Sony-Motoradio; São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 2006 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 281014

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 127; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 500 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Sistema Compacto de Som MHC-RG590S - Sony do Brasil, Sony-Motoradio
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 280 x 348 x 412 mm / 11 x 13.7 x 16.2 inch
  • Notes

  • MW and FM PLL radio with 3 CD changer and dual logic cassette deck

    MW = 530 to 1710 kHz
    FM = 87.5 to 108 MHz

    2 channel stereo, 1 subwoofer channel, MP3 playability, microphone input

    Remote control, clock and timer functions, output for phones

    Auxiliary input (3.5 mm jack)

    FTD type display

    Output power = 2 x 160W rms (left and rigth channes) and 1 x 180W rms for suboofer. All measured at 1 kHz, 10% THD, 6 Ohms

    The set is supplied with 2 speaker box, bass reflex type, 3 way speaker system (2 x 15 cm woofer and 5 cm horn tweeter), 6 Ohms

    The set is supplied with a subwoofer speaker box, 20 cm speaker, 6 Ohms

    L & R speaker box dimensions = 245 x 400 x 290 mm, 5.5 kg each
    Subwoofer dimensions = 320 x 400 x 330 mm, 7.2 kg

  • Net weight (2.2 lb = 1 kg)
  • 9.7 kg / 21 lb 5.9 oz (21.366 lb)
  • Literature/Schematics (1)

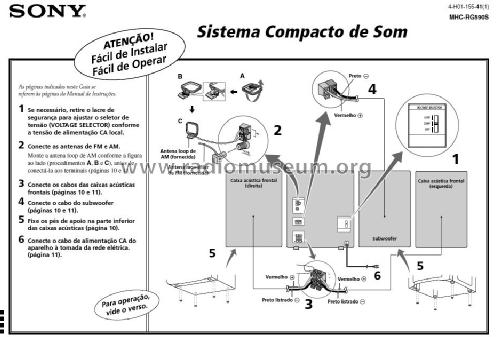

  • Manufacturer literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
